Alu-Flute Aluminium Garage Doors


Standard Opening Sizes Available:

  • Single: 2440mm (W) x 2135mm (H)
  • Double: 4880mm (W) x 2135mm (H)
  • Single Caravan: 2440mm (W) x 2500mm (H)
  • Double Caravan: 4880mm (W) x 2500mm (H)
SKU: N/A Categories: ,

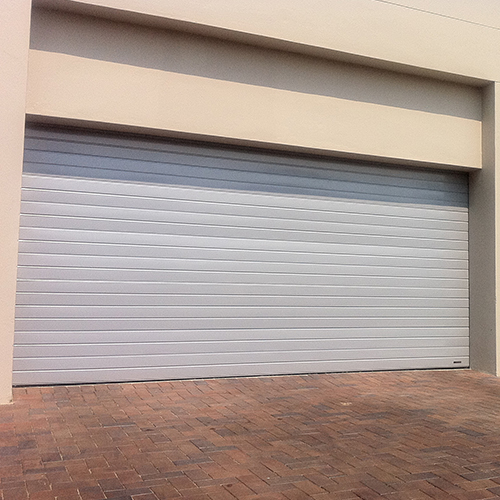

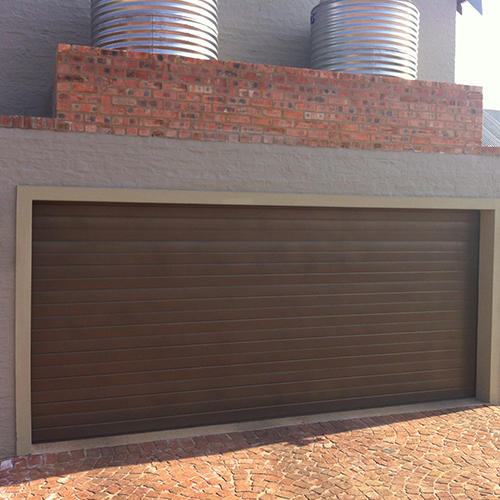

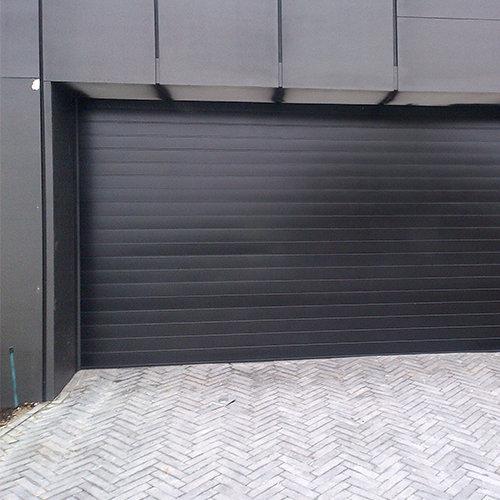

Our Alu-Flute Aluminium doors have a contemporary, smooth finish and provide exceptional strength and rigidity which is ideally suited for luxury homes and buildings. These doors can also be manufactured to fit custom sizes for our clients.

Additional information

Aluminium Sectional Variances

Bronze, Charcoal, White, Powder Coated


  • Superior strength and durability
  • Low maintenance
  • Temperature and sound control options
  • Smooth finish material
  • Quality hardware
  • Smooth and quiet operation
  • Optional window customisation available
  • Preferred option in coastal areas


  • The standard sectional overhead doors consist of 5 hinged panel sections per door.
  • Alu-Flute sectional overhead doors are considered to be a premium garage door for any homeowner. These doors are manufactured from pure aluminium, individually extruded profile sections and has a high anti rust resistance.
  • These sections are available in two horizontal profile sizes:
    • 2,5mm thick x 215mm wide
    • 1,6mm thick x 120mm wide
  • Individual profile sections are fixed together for exceptional strength and rigidity.
  • The panels can be insulated with noise-reducing and thermally conductive material.
  • Combined with an aluminium backing plate, these doors are perfect for sound and temperature control.
  • Optional glass oval view windows or aluminium windows can be fitted to the design to suit any design choice.
  • DG Nylon Hinge Hardware Kits can be used for smoother, quieter operation.
